ACC Series - Automotive Grade MLCCs
Core Features
- AEC-Q200 & IATF16949 qualified.
- Suitable for harsh Automotive environments without additional qualification testing
- Available with Polymer Termination (Super Term) to prevent mechanical cracking
- High Reliability
- RoHS compliant
- 250Vac, X1/Y2 Safety capacitors available
Applications
- Power supplies
- Lighting
- Isolation
- Powertrain
- Safety equipment
- Custom applications, BMS, Onboard charger
Summary of Specifications
| Operation Temperature | -55 ℃ to +125 ℃ | |
| Rated Voltage | 16Vdc ~ 1000 Vdc, 250Vac X1/Y2 Safety capacitors | |
| Temperature Coefficient | NP0 : ≤ ± 30ppm/ ℃ | -55 C to +125 ℃ (EIA Class I) |
| X7R: ± 15% | -55 C to +125 ℃ (EIA Class II) | |
| Capacitance Range | NP0 : 10pF ~ 47nF ; XR7 : 330pF ~ 4.7uF | |
| Dissipation Factor | NP0 : More than 30pF Q≥1000 ; 30pF & below Q≥400+20 C X7R : Range 2.5% to 10% |
|
| Insulation Resistance | 10GΩ or 500/C Ω, whichever is smaller (C in Farad) | |
| Aging | NP0 : 0% ; X7R : 2.5% per decade of time | |
| Dielectric Withstanding | V=100V(Cap<10uF) | 250% rated voltage |
| V < 100V | 250% rated voltage | |
| 100V ≤ V < 500V | 200% rated voltage | |
| 500V ≤ V < 1000V | 150% rated voltage | |
| 1000V ≤ V | 120% rated voltage | |

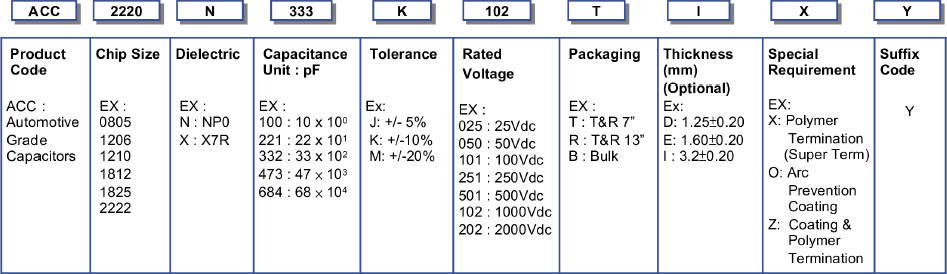

How To Order

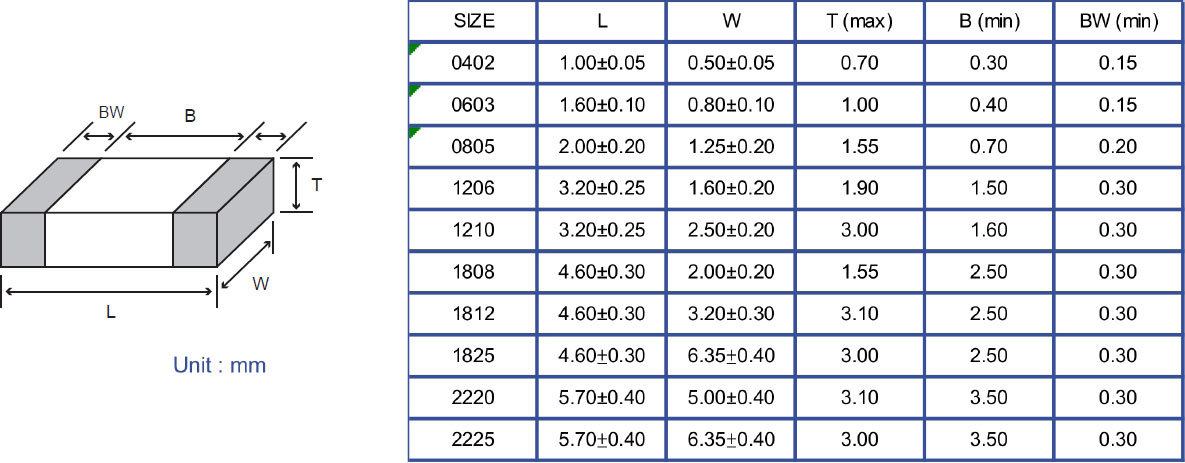

Dimensions
Thickness Dimensions
| Symbol Code | O | B | C | D | E |
| Thickness(mm) | 0.50±0.0 | 0.85±0.15 | 1.0+0.1/-0.05 | 1.25±0.20 | 1.6±0.20 |
| Symbol Code | F | G | M | H | I |
| Thickness(mm) | 2.0±0.20 | 2.4±0.20 | 2.50±0.20 | 2.8±0.20 | 3.20±0.20 |
- Other dimensions, capacitance values, and voltage ratings are available upon request. Please contact Holy Stone.
- For specifications & Test Conditions for 0603 and larger sizes, please see P56-P60.
- For Specifications & Test Conditions for 0402, please contact Holy Stone.

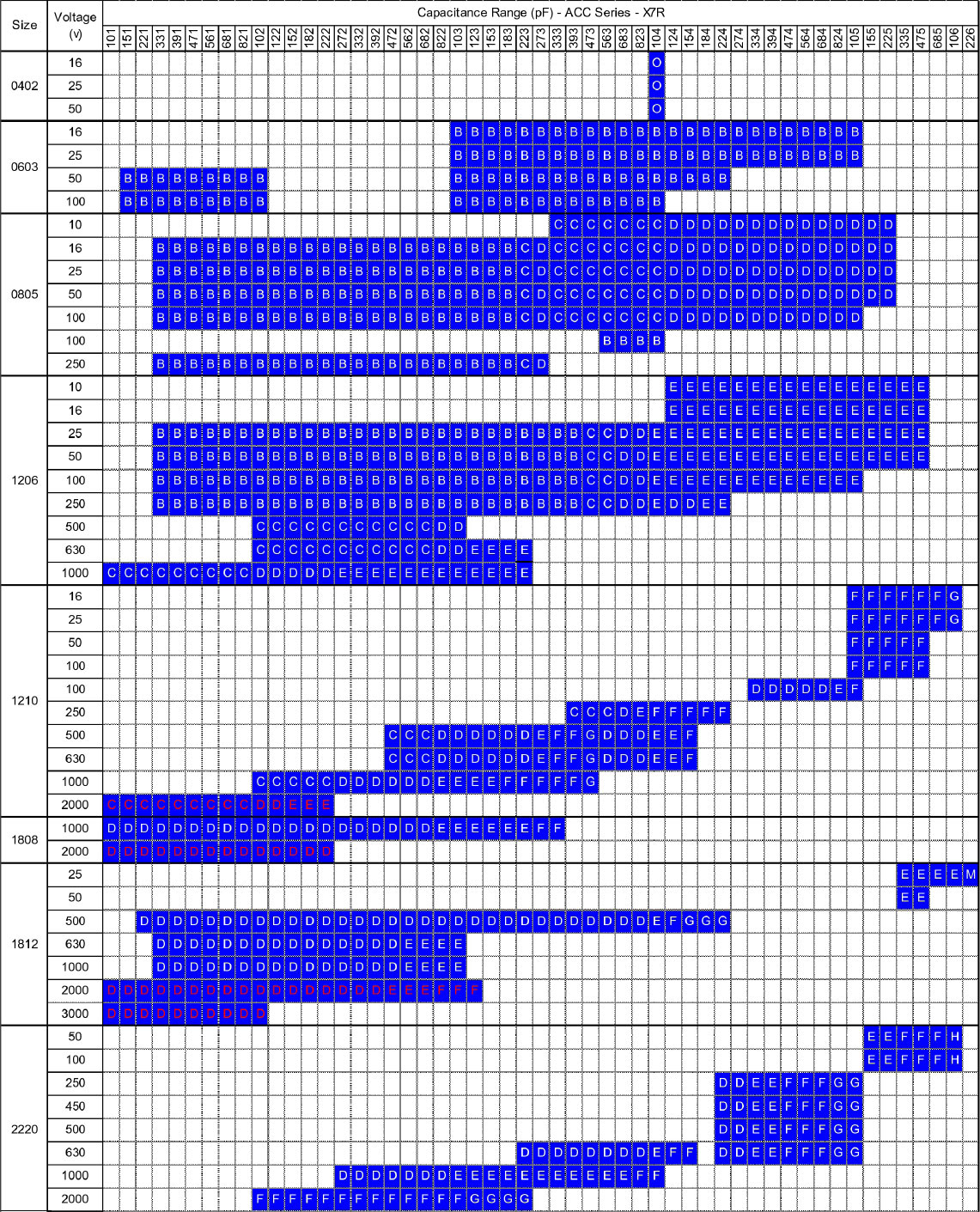

Capacitance Range: X7R 16V~3000V

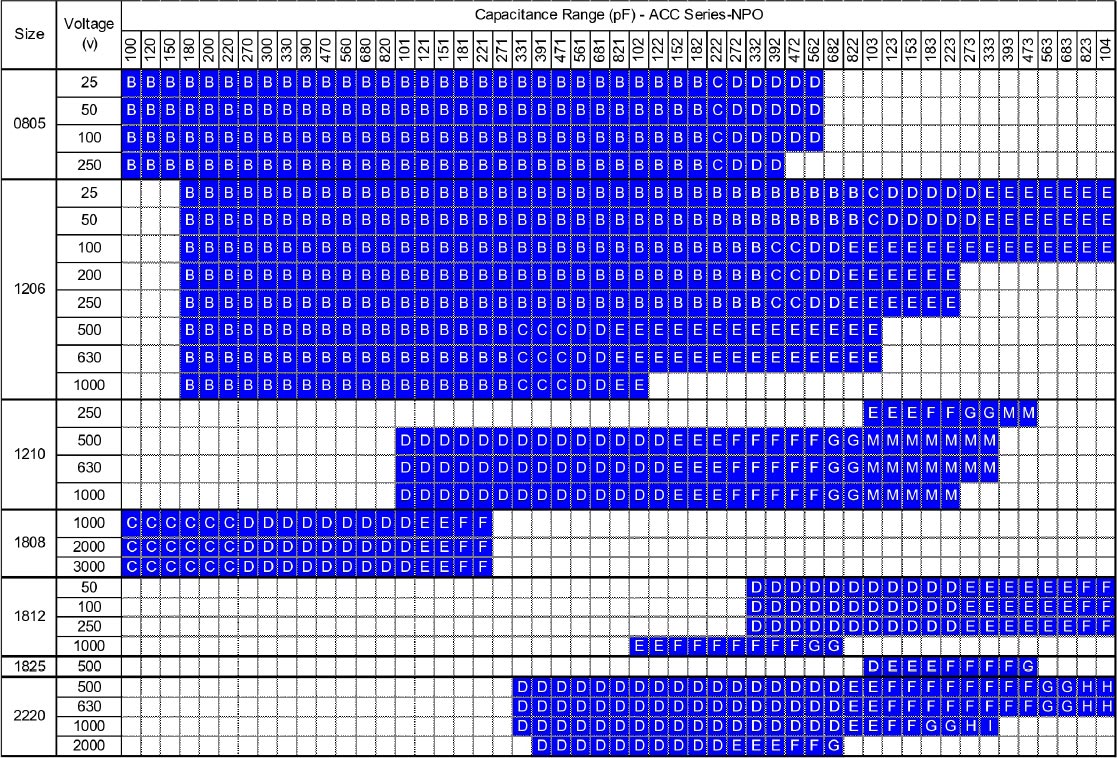

Capacitance Range: NPO 25V~2000KV
Multilayer Ceramic Capacitors
[Automotive Grade - X1/Y2 and X2 Safety Certified Capacitors ] Rated Voltage 250Vac
Core Features
- Suitable for harsh Automotive environments without additional qualification testing
- Available with Polymer Termination (Super Term) to prevent mechanical cracking
- High Reliability
- IATF16949 & AEC-Q200 qualified
- RoHS compliant
- 250Vac, X1/Y2, and X2 Safety Capacitors are available
Applications
- CAN-Bus Isolation, On-Board Charger
- Safety equipment
- Customized application

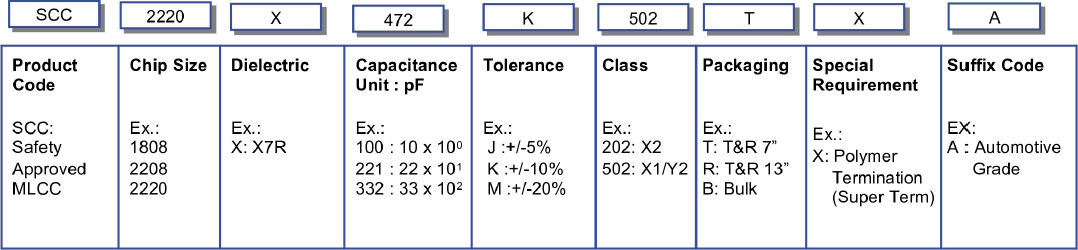

How To Order

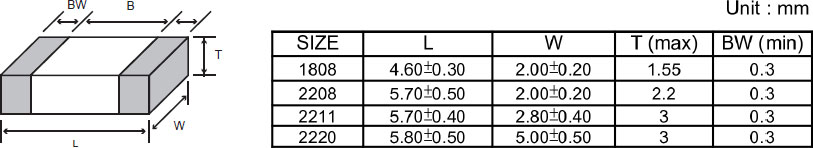

Dimensions

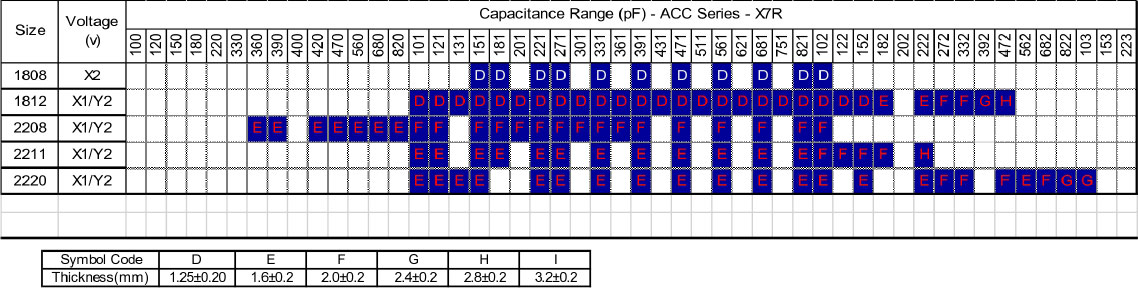

Capacitance Range
- Other dimensions, capacitance values, and voltage ratings are available on request. Please contact Holy Stone.
